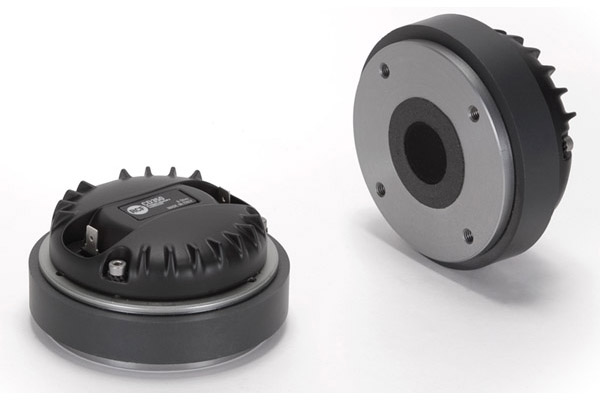

RCF CD350

CD350

The CD350 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat.

The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.





Features



1.75-inch Diaphragm, 1-inch Exit Throat / Polyester Compression Driver

100W continuous program power handling

Frequency range: 1200Hz – 20kHz

2-slot optimized geometry phase plug

Polyester diaphragm

Vented suspension system

Compact ceramic magnet assembly

General Specifications

Exit Throat Diameter: 25.4 / 1.0 mm/inch

Rated Impedance: 8 Ω
Power handling capacity continuous program: 100 W AES
Power handling capacity AES: 50 W AES

Sensitivity: 108 dB

Frequency Range: 1200 Hz ÷ 20000 Hz

Diaphragm Material: Polyester

Suspension Material: Polyester

Suspension Design: Flat

Minimum Impedance: (at 4.5kHz) 6.5 Ω

Voice Coil Diameter: 44.4 / 1.75 mm/inch

Voice Coil Material: Edgewound aluminium

Voice Coil Former Design: Straight kapton

Number of layers: 1 – outside

BL Factor: 6.7 T · m

Flux Density: 1.6 T

Phase Plug Design: 2 slots

Phase Plug Material: Composite

Magnetics: Ceramic



Mounting information

Overall diameter: 102 / 4 mm/inch

Overall height: 50 / 2.0 mm/inch

Mounting 4 × 5 mm holes at 90°: 76.2 / 3.0 mm/inch

Net weight: 1.2 / 2.8 kg/lbs

Shipping information

Shipping weight: 1.4 / 3.1 kg/lbs

Applications

• Very compact systems

• 2-way and multiple way systems

• Compact line arrays

• Flexible and easy to crossover

• Very good linearity in combination with RCF HF94, HF64, HF101 and H100 horns
